$1,419.00
Schonstedt - Magnetic Locator with Hard Case (GA-72Cd)—
$1,419.00
The Story

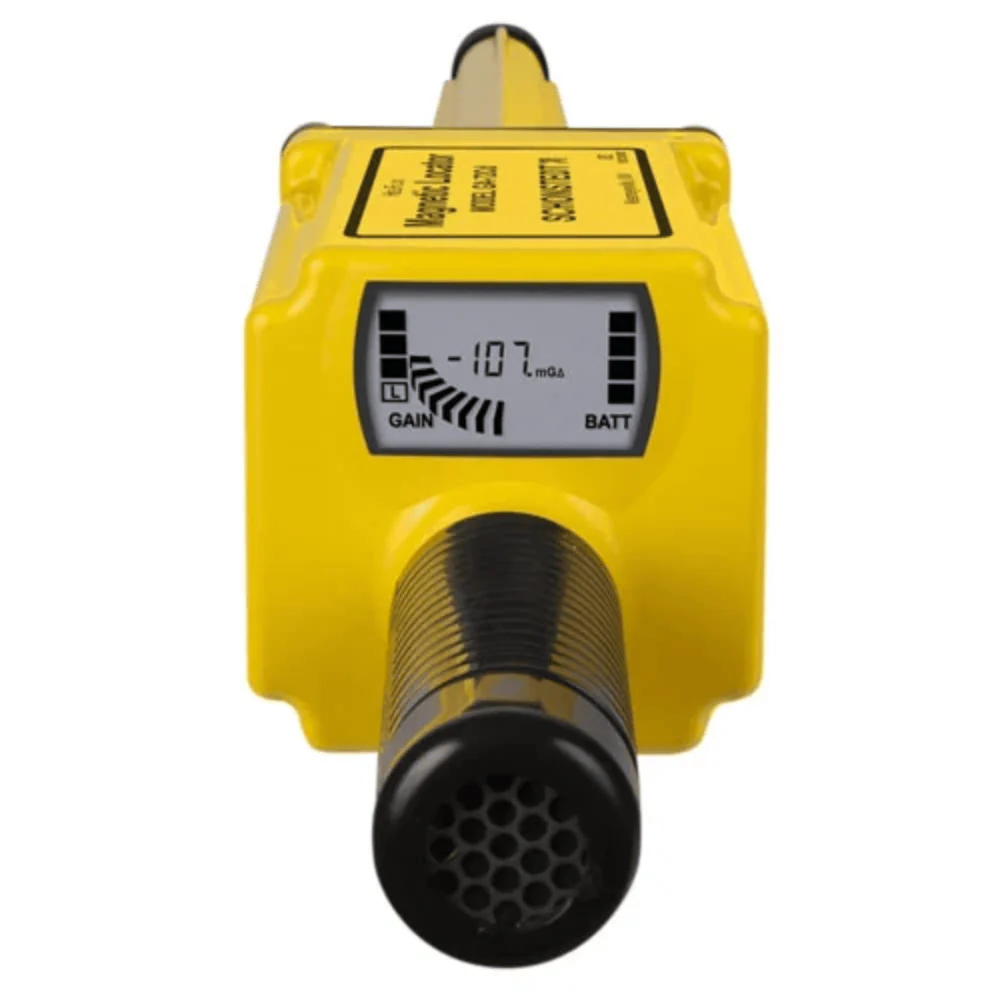

Schonstedt - Magnetic Locator with Hard Case (GA-72Cd)
Features
- Detects the magnetic field of iron and steel objects.
- Provides audio detection signals that peak in frequency when the locator’s tip is held directly over the target.
- Has the option of nulling or peaking.
- Only two Controls! Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.
- Most Rugged
- Most Popular for UXO and Demining Applications
- Audio & Visual Output
- Battery & Sensitivity Indicators
- Choice of Two Audio Modes: Peak or Null response
- 4 Levels of Sensitivity
- 3-digit LCD readout
- Signal Strength and Polarity Indications
- No response to aluminum, brass, or copper
- HeliFlux sensors
- Modular construction; high performance components
- Optimized for finding Survey Pins, Markers & Nails, Water & Gas Valves, Manhole Covers, Unexploded Ordnance, other deep iron/steel objects
Specifications
- Audio Output: Switch at “A” Signal increases or decreases in volume with gradient-field intensity; Switch at “B” Signal increases or decreases in frequency with gradient-field intensity.
- All GA-72Cds are shipped from the factory with the Audio Output Switch set to “B”. This provides an audio signal that is always present. If you prefer not to hear a signal until the locator is within detection range of a target, set the switch to “A”.
- Video Output: Digital readout and expanding bar graphs indicate polarity (+ or-) and relative strength of the magnetic field.
- Input Power: Supplied by two 9V batteries
- Battery Life: 40 Hours (intermittent usage)
- Battery Check: 4-segment LCD BATT indicator
- Output: Approximately 40 Hz audio tone on speaker; Tone frequency increases or decreases with gradient-field intensity.
- Weight: Approximately 2.5 lb (1.14 kg)
- Operating Temp: -13° to 140°F (-25° to 60°C)
- Overall Length: 34.5" (87.6 cm)
- Waterproof Length: 21" (53.3 cm)
- Nominal Sensor Spacing: 14" (35.6 cm)
- Construction: Rugged, all solid-state, polycarbonate & ABS casing
BUY NOW!
Order a Schonstedt - Magnetic Locator with Hard Case (GA-72Cd) from ModernMetalDetectors.com. Buy today and get free shipping with no sales tax!
Includes
- Magnetic locator with batteries
- Hard carrying case (302145)
- 7 Year Manufacturer's Limited Warranty
